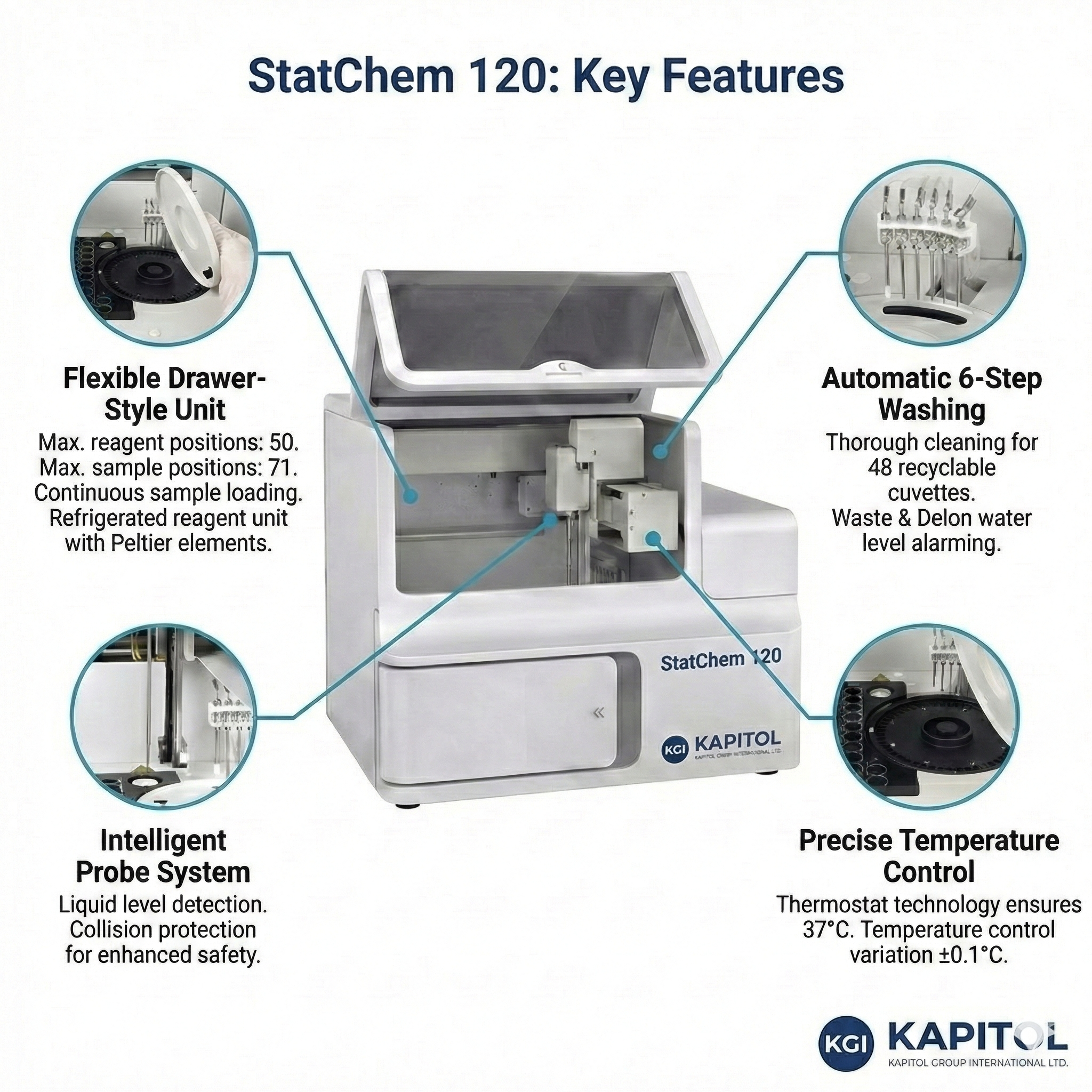

Key Advantages

• Up to 120 tests/hour (single-reagent)

• 72-position configuration: integrated sample and reagent positions for smooth daily workflow

• 48 reusable cuvettes: lowers consumable cost with stable temperature-controlled reactions

• Accurate temperature control: 37°C reaction temperature with tight stability (±0.1°C level)

• Lower utility and running cost: water consumption approx. 3 L/hour, supporting efficient maintenance

System & Testing Capability

• Assay modes: End-point, Rate (Kinetic), Fixed-time

• Test menu: supports up to ~200 photometric methods

• Sample carousel: 20 + 2 (STAT/emergency positions)

• Reagent carousel: up to 50 positions with refrigerated reagent tray (Peltier cooling)

• Pipetting system: separate sample/reagent probes with mixing, liquid level detection, collision protection, and automatic washing

Low-Volume Design (Save Sample & Reagent)

• Sample volume: 3–10 µL (0.1 µL step)

• Reagent volume: 15–300 µL (1 µL step)

• Minimum reaction volume: approx. 180 µL (typical total reaction range ~180–500 µL)

Optics & Measurement

• Light source: 10W / 6V halogen lamp

• Wavelengths: 8 wavelengths (340 / 405 / 450 / 510 / 546 / 578 / 630 / 700 nm)

• Absorbance range: 0–3.5 Abs

• Resolution: 0.0001 Abs

Calibration & Quality Control (QC)

• Calibration modes: 1-point linear, 2-point linear, multi-point linear, non-linear

• QC tools: Westgard multi-rules, Levey–Jennings (L-J) charts, and common QC management functions

Installation & Environment (Reference)

• Power: AC 110/220V, 50/60Hz, 300W

• Operating conditions: 15–30°C; 35–80% RH

• Dimensions / weight: approx. 520 × 512 × 440 mm; approx. 37 kg

• Volume: CBM approx. 0.1 m³ (easy shipping and bench-top deployment)
