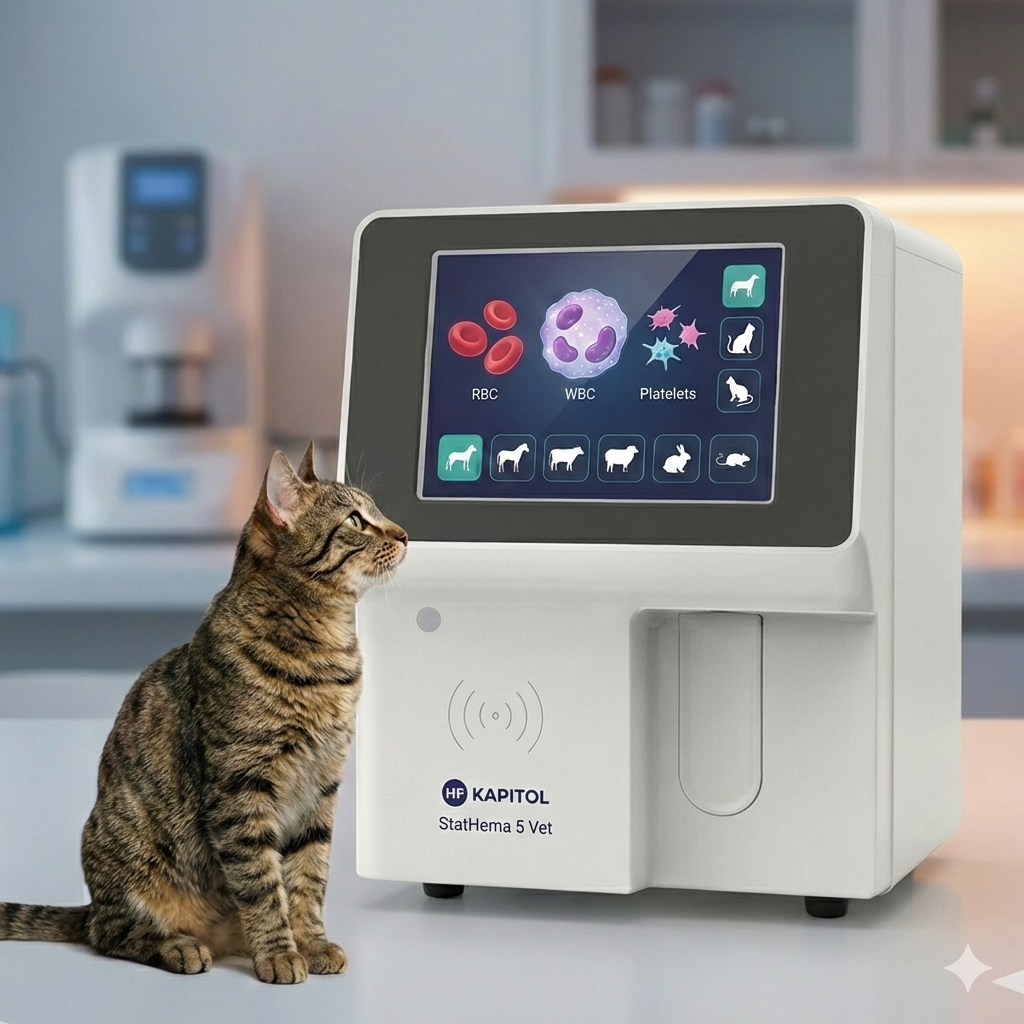

Fully automated 5-part veterinary hematology analyzer-StatHema 5 Vet
StatHema 5 VET is a fully automated 5-part differential veterinary hematology analyzer designed for fast, consistent CBC results across a wide range of animal species. It integrates semiconductor laser scattering, flow cytometry, 3D scattergram analysis, and electrical impedance measurement, with cyanide-free hemoglobin (HGB) measurement to support routine veterinary workflows with reliable performance and practical operating costs. With a built-in 14" LCD touch screen, StatHema 5 VET delivers an intuitive user experience without the need for an external PC—helping clinics and veterinary labs streamline daily testing, reduce training time, and improve turnaround time.
Key Benefits
-
Accurate data with advanced multi-technology measurement and robust analysis
-
Low blood consumption: CBC+DIFF < 20 µL (typical setting)
-
High throughput: up to 60 tests/hour (depending on mode/workflow)
-
Easy to operate with a clear UI and integrated result visualization
-
Connectivity-ready: LIS (HL7) support, multiple ports for extensions
-
Cost-efficient operation for daily veterinary use
Multi-Species Support
StatHema 5 VET includes predefined settings for comprehensive multi-species testing:
Companion Animals: Dog, Cat, Fish, Ferret, Rabbit, Rat
Farm & Large Animals: Horse, Cattle, Sheep, Pig, Deer, Camel, Chicken
Exotic & Zoo Animals: Monkey, Tiger, Dolphin, Panda
Parameters & Graphs
Reportable parameters (25 items):
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEUT, LYMPH, MON, EOS, BASO (with # / % fields as configured)
Research / extended parameters (4 items):
ALY#, ALY%, LIC#, LIC%
Graphs:
-
Scattergrams (e.g., WBC/BASO scatter plot depending on configuration)
-
Histograms: RBC histogram, PLT histogram
Core Specifications
-
Modes: CBC + DIFF; supports venous whole blood, pre-diluted peripheral blood, anticoagulated peripheral whole blood (by mode)
-
Throughput: up to 60 samples/hour
-
Sample volume: CBC+DIFF < 20 µL
-
Display: 14" LCD touch screen, resolution 1564 × 768
-
Interfaces: 1× network port, 4× USB; two-way LIS (HL7); supports external USB printer / WiFi (options); built-in RFID scanner support (as configured)
-
Data storage: 100,000+ results including histograms, scattergrams, and patient information
-
Size / weight: approx. 350(W) × 460(D) × 430(H) mm, ~28 kg
-
Operating environment: AC input; 10–30°C, 20–85% RH, 70–1066 hPa, altitude < 2000 m
